Support rollers
C&H support rollers have an internal design based on needle or cylindrical roller bearings. They have a thick-walled outer ring, which enables them to accommodate high radial loads, while reducing distortion and bending stresses.
The outer ring running surface is crowned as standard. However, support rollers with a cylindrical (flat) running surface are also available. These pre-greased, ready-to-mount units are suitable for all types of cam drives, tracks and conveyor systems.
Metric
Series - Features
RSTO - separable,outer ring without rib,without inner ring
STO - separable,outer ring without rib,with inner ring
RNA22-2RS - separable, outer ring withour rib, without inner ring, double lip seals
NA22 -2RS - separable, outer ring withour rib, with inner ring, double lip seals
NAST-ZZR - separable,crowned outer ring, double shields
NAST-ZZ - separable,cylindrical outer ring,double shields
NAST-ZZUUR - separable,crowned outer ring,double shields and lip seals
NAST-ZZUU - separable,cylindrical outer ring,double shields and lip seals
NATR - with inner ring, axial plain washers on both sides
NATR-PP - with inner ring, axial plain washers and lip seals on both sides
NATV - full complement needle roller set, with inner ring, axial plain washers on both sides
NATV-PP - full complement needle roller set,with inner ring, axial plain washers and lip seals on both sides
NUTR - full complement cylindrical roller set, with inner ring, labyrinth seals on both sides
PWTR-2RS - full complement cylindrical roller set, with inner ring, lip seals on both sides
NNTR..-2ZL - Full complement cylindrical roller set, with inner ring, central rib
sealing shields with lamellar ring on both sides
Inch
CYR - full complement needle roller set, with inner ring, axial plain washers on both sides
YCRSR - full complement needle roller se
- Manufactured from bearing quality steel
- Black oxide finish on all external surfaces inhibits corrosion
- Bearings pre-lubricated with lithium soap thickened grease
- Working temperature -10 °C up to 120 °C
- Applications include conveying, mixing equipment, material handling, automotive and packaging
| C&H | Dimensions (Inch) | Wgt. | Interchange | ||||||
| McGill | d | D | B | C | lbs | INA | RBC | Smith | Torrington |
| CYR- 3/4 -S | 0.2500 | 0.7500 | 0.5625 | 0.5000 | 0.06 | RF-12-PP | Y-24-L | YR- 3/4 -X | YCRS-12 |
| CYR- 7/8 -S | 0.2500 | 0.8750 | 0.5625 | 0.5000 | 0.08 | RF-14-PP | Y-28-L | YR- 7/8 -X | YCRS-14 |
| CYR-1-S | 0.3125 | 1.0000 | 0.6875 | 0.6250 | 0.15 | RF-16-PP | Y-32-L | YR-1-X | YCRS-16 |
| CYR-1 1/8 -S | 0.3125 | 1.1250 | 0.6875 | 0.6250 | 0.17 | RF-18-PP | Y-36-L | YR-1 1/8 -X | YCRS-18 |
| CYR-1 1/4 -S | 0.3750 | 1.2500 | 0.8125 | 0.7500 | 0.24 | RF-20-PP | Y-40-L | YR-1 1/4 -X | YCRS-20 |
| CYR-1 3/8 -S | 0.3750 | 1.3750 | 0.8125 | 0.7500 | 0.3 | RF-22-PP | Y-44-L | YR-1 3/8 -X | YCRS-22 |
| CYR-1 1/2 -S | 0.4375 | 1.5000 | 0.9375 | 0.8750 | 0.41 | RF-24-PP | Y-48-L | YR-1 1/2 -X | YCRS-24 |
| CYR-1 5/8 -S | 0.4375 | 1.6250 | 0.9375 | 0.8750 | 0.5 | RF-26-PP | Y-52-L | YR-1 5/8 -X | YCRS-26 |
| CYR-1 3/4 -S | 0.5000 | 1.7500 | 1.0625 | 1.0000 | 0.64 | RF-28-PP | Y-56-L | YR-1 3/4 -X | YCRS-28 |
| CYR-1 7/8 -S | 0.5000 | 1.8750 | 1.0625 | 1.0000 | 0.8 | RF-30-PP | Y-60-L | YR-1 7/8 -X | YCRS-30 |
| CYR-2-S | 0.6250 | 2.0000 | 1.3125 | 1.2500 | 1.05 | RF-32-PP | Y-64-L | YR-2-X | YCRS-32 |
| CYR-2 1/4 -S | 0.6250 | 2.2500 | 1.3125 | 1.2500 | 1.32 | RF-36-PP | Y-72-L | YR-2 1/4 -X | YCRS-36 |
| CYR-2 1/2 -S | 0.7500 | 2.5000 | 1.5625 | 1.5000 | 1.8 | RF-40-PP | Y-80-L | YR-2 1/2 -X | YCRS-40 |
| CYR-2 3/4 -S | 0.7500 | 2.7500 | 1.5625 | 1.5000 | 2.25 | RF-44-PP | Y-88-L | YR-2 3/4 -X | YCRS-44 |
| CYR-3-S | 1.0000 | 3.0000 | 1.8125 | 1.7500 | 3.1 | RF-48-PP | Y-96-L | YR-3-X | YCRS-48 |
| CYR-3 1/4 -S | 1.0000 | 3.2500 | 1.8125 | 1.7500 | 3.62 | RF-52-PP | Y-104-L | YR-3 1/4 -X | YCRS-52 |
| CYR-3 1/2 -S | 1.1250 | 3.5000 | 2.0625 | 2.0000 | 4.95 | RF-56-PP | Y-112-L | YR-3 1/2 -X | YCRS-56 |
| CYR-4-S | 1.2500 | 4.0000 | 2.3125 | 2.2500 | 7.05 | RF-64-PP | Y-128-L | YR-4-X | YCRS-64 |
| CYR-5-S | 1.7500 | 5.0000 | 2.8750 | 2.7500 | 13.2 | - | Y-160-L | YR-5-X | YCRS-80 |
| CYR-6-S | 2.2500 | 6.0000 | 3.3750 | 3.2500 | 21.9 | - | Y-192-L | YR-6-X | YCRS-96 |
| CYR-7-S | 2.7500 | 7.0000 | 3.8750 | 3.7500 | 33.9 | - | Y-224-L | - | - |
- Yoke Type Track Roller / Support Roller / Roller Follower STO / NAST...R /NAB
- it consists of a thick-walled outer ring with profiled outside surface profile and a needle roller and cage assembly and an inner ring
- supports high radial and axial loads from slight misalignments and skewed running
- it has a temperature resistance ranging from -10 °C up to 120 °C
- it requires an axis with a hardened and ground raceway
|
C&H |
d |
D |
B |
C |
F |
E |
r min |
Cr |
Cor |
Pu |
speed |
Mass |
|
|
mm |
mm |
mm |
mm |
mm |
mm |
mm |
kn |
kn |
kn |
r/min |
kg |
|
STO6 |
6 |
19 |
10 |
9.8 |
10 |
13 |
0.3 |
3.75 |
4.55 |
0.65 |
10000 |
0.018 |
|
STO8 |
8 |
24 |
10 |
9.8 |
12 |
15 |
0.3 |
4.2 |
5.5 |
0.78 |
8000 |
0.028 |
|
STO10 |
10 |
30 |
12 |
11.8 |
14 |
20 |
0.3 |
8.4 |
9.3 |
1.37 |
5500 |
0.049 |
|
STO12 |
12 |
32 |
12 |
11.8 |
16 |
22 |
0.3 |
9.0 |
10.3 |
1.53 |
4500 |
0.057 |
|
STO15 |
15 |
35 |
12 |
11.8 |
20 |
26 |
0.3 |
9.1 |
10.9 |
1.64 |
3300 |
0.063 |
|
STO17 |
17 |
40 |
16 |
15.8 |
22 |
29 |
0.3 |
14.2 |
17.9 |
2.55 |
2800 |
0.11 |
|
STO20 |
20 |
47 |
16 |
15.8 |
25 |
32 |
0.3 |
16.1 |
21.7 |
3.05 |
2400 |
0.15 |
|
STO25 |
25 |
52 |
16 |
15.8 |
30 |
37 |
0.3 |
16.4 |
23.2 |
3.3 |
1800 |
0.18 |
|
STO30 |
30 |
62 |
20 |
19.8 |
38 |
46 |
0.6 |
23.1 |
35.0 |
4.7 |
1300 |
0.31 |
|
STO35 |
35 |
72 |
20 |
19.8 |
42 |
50 |
0.6 |
25.0 |
40.5 |
5.4 |
1100 |
0.44 |
|
STO40 |
40 |
80 |
20 |
19.8 |
50 |
58 |
1.0 |
23.7 |
39.5 |
5.9 |
850 |
0.53 |
|
STO45 |
45 |
85 |
20 |
19.8 |
55 |
63 |
1.0 |
25.0 |
43.5 |
5.9 |
750 |
0.58 |
|
STO50 |
50 |
90 |
20 |
19.8 |
60 |
68 |
1.0 |
26.0 |
45.5 |
6.3 |
650 |
0.62 |
- Yoke Type Track Roller / Support Roller / Roller Follower RSTO / RNAST...R / RNAB
- it consists of a thick-walled outer ring with profiled outside surface profile and a needle roller and cage assembly, it is not sealed but filled with grease
- supports high radial and axial loads from slight misalignments and skewed running
- it has a temperature resistance ranging from -10 °C up to 120 °C
- it requires an axis with a hardened and ground raceway
|
C&H |
Fw |
D |
C |
E |
r min |
Cr |
Cor |
Pu |
speed |
Mass |
|
mm |
mm |
mm |
mm |
mm |
kN |
kN |
kN |
r/min |
kg |
|
|
RSTO5 |
7 |
16 |
7.8 |
10 |
0.3 |
2.55 |
2.6 |
0.3 |
16000 |
0.009 |
|
RSTO6 |
10 |
19 |
9.8 |
13 |
0.3 |
3.75 |
4.55 |
0.65 |
10000 |
0.014 |
|
RSTO8 |
12 |
24 |
9.8 |
15 |
0.3 |
4.2 |
5.5 |
0.78 |
8000 |
0.021 |
|
RSTO10 |
14 |
30 |
11.8 |
20 |
0.3 |
8.4 |
9.3 |
1.37 |
5500 |
0.042 |
|
RSTO12 |
16 |
32 |
11.8 |
22 |
0.3 |
9.0 |
10.3 |
1.53 |
4500 |
0.049 |
|
RSTO15 |
20 |
35 |
11.8 |
26 |
0.3 |
9.1 |
10.9 |
1.64 |
3300 |
0.050 |
|
RSTO17 |
22 |
40 |
15.8 |
29 |
0.3 |
14.2 |
17.9 |
2.55 |
2800 |
0.088 |
|
RSTO20 |
25 |
47 |
15.8 |
32 |
0.3 |
16.1 |
21.7 |
3.05 |
2400 |
0.130 |
|
RSTO25 |
30 |
52 |
15.8 |
37 |
0.3 |
16.4 |
23.2 |
3.3 |
1800 |
0.150 |
|
RSTO30 |
38 |
62 |
19.8 |
46 |
0.6 |
23.1 |
35.0 |
4.7 |
1300 |
0.255 |
|
RSTO35 |
42 |
72 |
19.8 |
50 |
0.6 |
25.0 |
40.5 |
5.4 |
1100 |
0.375 |
|
RSTO40 |
50 |
80 |
19.8 |
58 |
1.0 |
23.7 |
39.5 |
5.9 |
850 |
0.420 |
|
RSTO45 |
55 |
85 |
19.8 |
63 |
1.0 |
25.0 |
43.5 |
5.9 |
750 |
0.453 |
|
RSTO50 |
60 |
90 |
19.8 |
68 |
1.0 |
25.5 |
46.5 |
6.3 |
650 |
0.481 |
- The Yoke Type Track Roller NA22/6-2RSR belongs to the series with axial guidance and labyrinth seals on both sides
- it consists of a thick-walled outer ring with profiled outside surface profile and a needle roller and cage assembly, it is both side lip sealed and filled with grease
- since the bearing hasn´t got a cage, it has a particularly high load capacity by the maximum number of rolling elements and supports high radial and also high axial loads
- it has a temperature resistance ranging from -10 °C up to 120 °C
- the inner ring can be fixed - separately from the outer ring - with the needle roller and cage assembly
- it is used if the axis doesn´t have a hardened and ground raceway
| NA22-2RSR | RNA22-2RSR | d | D | B | C | D1 | F | NA | RNA |
| Crown OD | Crown OD | mm | mm | mm | mm | mm | mm | kg | kg |
| NA22/6-2RSR | RNA22/6-2RSR | 6 | 19 | 12 | 11.8 | 16 | 10 | 0.022 | 0.018 |
| NA22/8-2RSR | RNA22/8-2RSR | 8 | 24 | 12 | 11.8 | 18 | 12 | 0.034 | 0.029 |
| NA2200-2RSR | RNA2200-2RSR | 10 | 30 | 14 | 13.8 | 20 | 14 | 0.059 | 0.052 |
| NA2201-2RSR | RNA2201-2RSR | 12 | 32 | 14 | 13.8 | 22 | 16 | 0.067 | 0.057 |
| NA2202-2RSR | RNA2202-2RSR | 15 | 35 | 14 | 13.8 | 26 | 20 | 0.075 | 0.060 |
| NA2203-2RSR | RNA2203-2RSR | 17 | 40 | 16 | 15.8 | 28 | 22 | 0.112 | 0.094 |
| NA2204-2RSR | RNA2204-2RSR | 20 | 47 | 18 | 17.8 | 33 | 25 | 0.176 | 0.152 |
| NA2205-2RSR | RNA2205-2RSR | 25 | 52 | 18 | 17.8 | 38 | 30 | 0.209 | 0.179 |
| NA2206-2RSR | RNA2206-2RSR | 30 | 62 | 20 | 19.8 | 43 | 35 | 0.324 | 0.283 |
| NA2207-2RSR | RNA2207-2RSR | 35 | 72 | 23 | 22.8 | 50 | 42 | 0.505 | 0.432 |
| NA2208-2RSR | RNA2208-2RSR | 40 | 80 | 23 | 22.8 | 57 | 48 | 0.628 | 0.530 |
| NA2209-2RSR | RNA2209-2RSR | 45 | 85 | 23 | 22.8 | 62 | 52 | 0.655 | 0.545 |
| NA2210-2RSR | RNA2210-2RSR | 50 | 90 | 23 | 22.8 | 68 | 58 | 0.690 | 0.585 |
- Yoke Type Track Roller / Support Roller / Roller Follower NATR / NART...R / MCYRR
- thick-walled outer ring with profiled outside surface profile
- a cage-guided needle-insert
- two rib washers are pressed on the inner ring
- working temperature -10 °C up to 120 °C
| C&H | C&H | d | D | B | C | d1 | r min | Cr | Cor | Speed | Mass |
| with seals | w/t seals | mm | mm | mm | mm | mm | mm | kN | kN | rpm | kg |
| NATR5PP | NATR5 | 5 | 16 | 12 | 11 | 12 | 0.15 | 3.14 | 3.2 | 6000 | 0.014 |
| NATV5PP | NATV5 | 5 | 16 | 12 | 11 | 12 | 0.15 | 4.73 | 6.55 | 4300 | 0.015 |
| NATR6PP | NATR6 | 6 | 19 | 12 | 11 | 14 | 0.15 | 3.47 | 3.8 | 5600 | 0.02 |
| NATV6PP | NATV6 | 6 | 19 | 12 | 11 | 14 | 0.15 | 5.28 | 8 | 4000 | 0.021 |
| NATR8PP | NATR8 | 8 | 24 | 15 | 14 | 17.5 | 0.3 | 5.28 | 6.1 | 5000 | 0.041 |
| NATV8PP | NATV8 | 8 | 24 | 15 | 14 | 17.5 | 0.3 | 7.48 | 11.4 | 3600 | 0.042 |
| NATR10PP | NATR10 | 10 | 30 | 15 | 14 | 23.5 | 0.6 | 6.44 | 8 | 4800 | 0.064 |
| NATV10PP | NATV10 | 10 | 30 | 15 | 14 | 23.5 | 0.6 | 8.97 | 14.6 | 3200 | 0.065 |
| NATR12PP | NATR12 | 12 | 32 | 15 | 14 | 25.5 | 0.6 | 6.6 | 8.5 | 4500 | 0.071 |
| NATV12PP | NATV12 | 12 | 32 | 15 | 14 | 25.5 | 0.6 | 9.35 | 15.3 | 3000 | 0.072 |
| NATR15PP | NATR15 | 15 | 35 | 19 | 18 | 29 | 0.6 | 9.52 | 13.7 | 4000 | 0.1 |
| NATV15PP | NATV15 | 15 | 35 | 19 | 18 | 29 | 0.6 | 12.3 | 23.2 | 2600 | 0.11 |
| NATR17PP | NATR17 | 17 | 40 | 21 | 20 | 32.5 | 1 | 10.5 | 14.6 | 3400 | 0.14 |
| NATV17PP | NATV17 | 17 | 40 | 21 | 20 | 32.5 | 1 | 14.2 | 26.2 | 2200 | 0.15 |
| NATR20PP | NATR20 | 20 | 47 | 25 | 24 | 38 | 1 | 14.7 | 24.5 | 3000 | 0.25 |
| NATV20PP | NATV20 | 20 | 47 | 25 | 24 | 38 | 1 | 19.4 | 41.5 | 1900 | 0.25 |
| NATR25PP | NATR25 | 25 | 52 | 25 | 24 | 43 | 1 | 14.7 | 25.5 | 2400 | 0.28 |
| NATV25PP | NATV25 | 25 | 52 | 25 | 24 | 43 | 1 | 19.8 | 44 | 1600 | 0.29 |
| NATR30PP | NATR30 | 30 | 62 | 29 | 28 | 50.5 | 1 | 22.9 | 37.5 | 1800 | 0.47 |
| NATV30PP | NATV30 | 30 | 62 | 29 | 28 | 50.5 | 1 | 29.2 | 62 | 1400 | 0.48 |
| NATR35PP | 35 | 72 | 29 | 28 | 53.5 | 1.1 | 24.6 | 43 | 1600 | 0.64 | |
| NATV35PP | 35 | 72 | 29 | 28 | 53.5 | 1.1 | 31.9 | 72 | 1100 | 0.65 | |
| NATR40PP | 40 | 80 | 32 | 30 | 61.5 | 1.1 | 31.9 | 57 | 1500 | 0.81 | |
| NATV40PP | 40 | 80 | 32 | 30 | 61.5 | 1.1 | 39.1 | 88 | 950 | 0.89 | |
| NATR50PP | 50 | 90 | 32 | 30 | 76 | 1.1 | 30.8 | 58.5 | 1200 | 0.96 | |
| NATV50PP | 50 | 90 | 32 | 30 | 76 | 1.1 | 39.1 | 93 | 850 | 0.99 |

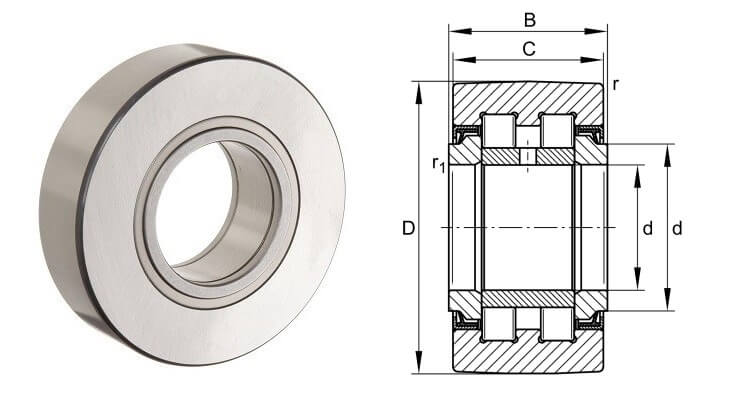

- Yoke Type Track Roller NUTR belongs to the series with axial guidance and labyrinth seals on both sies
- double row, full complement cylindrical roller; the roller sets are directly arranged adjacent to each other, two loose rib washers serve as axial support
- it has a temperature resistance ranging from -10 °C up to 120 °C
- the axial guidance of the roller sets is carried out by two ribs firmly fixed on the outer ring
- use of these bearings as pressure rollers, cam followers, conveyor belt rollers, bearings for fork lift masts
- example application: packaging machines, transport systems, roll-up doors, roller tensioners, fork lift
| C&H | d | D | B | C | Weight | IKO | McGill | NTN |
| mm | mm | mm | mm | kg | ||||
| NUTR15 | 15 | 35 | 19 | 18 | 0.099 | NURT15 | MCYRD15 | NUTR202 |
| NUTR1542 | 15 | 42 | 19 | 18 | 0.158 | NURT15-1 | NUTR302 | |
| NUTR17 | 17 | 40 | 21 | 20 | 0.147 | NURT17 | MCYRD17 | NUTR203 |
| NUTR1747 | 17 | 47 | 21 | 20 | 0.222 | NURT17-1 | NUTR303 | |
| NUTR20 | 20 | 47 | 25 | 24 | 0.245 | NURT20 | MCYRD20 | NUTR204 |
| NUTR2052 | 20 | 52 | 25 | 24 | 0.3321 | NURT20-1 | NUTR304 | |
| NUTR25 | 25 | 52 | 25 | 24 | 0.281 | NURT25 | MCYRD25 | NUTR205 |
| NUTR2562 | 25 | 62 | 25 | 24 | 0.450 | NURT25-1 | NUTR305 | |
| NUTR30 | 30 | 62 | 29 | 28 | 0.466 | NURT30 | MCYRD30 | NUTR206 |
| NUTR3072 | 30 | 72 | 29 | 28 | 0.697 | NURT30-1 | NUTR306 | |
| NUTR35 | 35 | 72 | 29 | 28 | 0.630 | NURT35 | MCYRD35 | NUTR207 |
| NUTR3580 | 35 | 80 | 29 | 28 | 0.840 | NURT35-1 | NUTR307 | |
| NUTR40 | 40 | 80 | 32 | 30 | 0.817 | NURT40 | MCYRD40 | NUTR208 |
| NUTR4090 | 40 | 90 | 32 | 30 | 1.130 | NURT40-1 | NUTR308 | |
| NUTR45 | 45 | 85 | 32 | 30 | 0.883 | NURT45 | MCYRD45 | NUTR209 |
| NUTR45100 | 45 | 100 | 32 | 30 | 1.400 | NURT45-1 | NUTR309 | |
| NUTR50 | 50 | 90 | 32 | 30 | 0.950 | NURT50 | MCYRD50 | NUTR210 |
| NUTR50110 | 50 | 110 | 32 | 30 | 1.690 | NURT50-1 | NUTR310 |
- NNTR series support roller with flange rings with
- double row - full complement roller set
- the axial guidance of the roller sets is carried out by three ribs firmly fixed on the outer ring
- it has a temperature resistance ranging from -30 °C up to 140 °C
- use of these bearings as pressure rollers, cam followers, conveyor belt rollers, bearings for fork lift masts
- example application: packaging machines, transport systems, roll-up doors, roller tensioners, fork lift
| C&H/INA/SKF | CR | d | D | B | C | D1 | d2 | d3 | R | r1 | r | Weight |
| h10 | kg | |||||||||||
| NNTR50X130X65-2ZL | RSU50-130 | 50 | 130 | 65 | 63 | 80 | 63 | 3 | 10000 | 2 | 3 | 5.2 |
| NNTR55X140X70-2ZL | RSU55-140 | 55 | 140 | 70 | 68 | 91 | 73 | 4 | 10000 | 2 | 3 | 6.4 |
| NNTR60X150X75-2ZL | RSU60-150 | 60 | 150 | 75 | 73 | 97 | 78 | 4 | 10000 | 2 | 3 | 7.8 |
| NNTR65X160X75-2ZL | RSU65-160 | 65 | 160 | 75 | 73 | 103 | 82 | 5 | 10000 | 2 | 3 | 8.8 |
| NNTR70X180X85-2ZL | RSU70-180 | 70 | 180 | 85 | 83 | 115 | 92 | 5 | 10000 | 2 | 3 | 13 |
| NNTR80X200X90-2ZL | RSU80-200 | 80 | 200 | 90 | 88 | 127 | 102 | 5 | 10000 | 2 | 4 | 16.8 |
| NNTR90X220X100-2ZL | RSU90-220 | 90 | 220 | 100 | 98 | 146 | 119 | 5 | 10000 | 2.5 | 4 | 22.5 |
| NNTR100X240X105-2ZL | RSU100-240 | 100 | 240 | 105 | 103 | 160 | 132 | 6 | 10000 | 2.5 | 4 | 28 |
| NNTR110X260X115-2ZL | RSU110-260 | 110 | 260 | 115 | 113 | 174 | 143 | 6 | 10000 | 2.5 | 4 | 35.6 |
| NNTR120X290X135-2ZL | RSU120-290 | 120 | 290 | 135 | 133 | 191 | 155 | 8 | 15000 | 3 | 4 | 52.8 |
| NNTR130X310X146-2ZL | RSU130-310 | 130 | 310 | 146 | 144 | 204 | 165 | 8 | 15000 | 3 | 5 | 65.2 |
| NNTR140X340X162-2ZL | RSU140-340 | 140 | 340 | 162 | 160 | 15000 | 3 | 5 | 87.2 | |||
| NNTR150X360X173-2ZL | RSU150-360 | 150 | 360 | 173 | 171 | 15000 | 3 | 5 | 104 |
-
The Yoke Type Track Roller PWTR15-2RS belongs to the series of full complement cylindrical roller set with axial guidance
- it is based on double row, full complement cylindrical roller bearings; the two rows of rollers are guided separately from each other by the three ribs firmly mounted on the outer ring; two loose rib washers serve as axial support
- it has a particularly high load capacity by the maximum number of rolling elements and supports high radial and also high axial loads In addition, there is a reduction of friction due to the open space between the roller sets which is filled with grease, relatively high and also permanent axial loads can thus be supported
- it has a temperature resistance ranging from -10 °C up to 120 °C
- the axial guidance of the roller sets is carried out by two ribs firmly fixed on the outer ring
- use of these bearings as pressure rollers, cam followers, conveyor belt rollers, bearings for fork lift masts
- example application: packaging machines, transport systems, roll-up doors, roller tensioners, fork lift
|
C&H |
d |
D |
B |
C |
Cr |
Cor |
speed |
Mass |
|
PWTR15.2RS |
15 |
35 |
19 |
18 |
11.6 |
11.3 |
6000 |
0.099 |
|
PWTR1542.2RS |
15 |
42 |
19 |
18 |
13.2 |
13.8 |
6000 |
0.158 |
|
PWTR17.2RS |
17 |
40 |
21 |
20 |
13.6 |
14.1 |
5000 |
0.147 |
|
PWTR1747.2RS |
17 |
47 |
21 |
20 |
14.8 |
16.4 |
5000 |
0.22 |
|
PWTR20.2RS |
20 |
47 |
25 |
24 |
23.5 |
25.5 |
3800 |
0.245 |
|
PWTR2052.2RS |
20 |
52 |
25 |
24 |
25.5 |
29.5 |
3800 |
0.321 |
|
PWTR25.2RS |
25 |
52 |
25 |
24 |
24.2 |
28.0 |
3800 |
0.281 |
|
PWTR2562.2RS |
25 |
62 |
25 |
24 |
29.0 |
36.0 |
3800 |
0.45 |
|
PWTR30.2RS |
30 |
62 |
29 |
28 |
35 |
39.5 |
2200 |
0.465 |
|
PWTR3072.2RS |
30 |
72 |
29 |
28 |
40 |
49.0 |
2200 |
0.697 |
|
PWTR35.2RS |
35 |
72 |
29 |
28 |
38.5 |
46.0 |
1800 |
0.63 |
|
PWTR3580.2RS |
35 |
80 |
29 |
28 |
43.5 |
55.0 |
1800 |
0.836 |
|
PWTR40.2RS |
40 |
80 |
32 |
30 |
44.5 |
53.0 |
1500 |
0.816 |
|
PWTR4090.2RS |
40 |
90 |
32 |
30 |
52 |
66.0 |
1500 |
1.129 |
|
PWTR45.2RS |
45 |
85 |
32 |
30 |
45 |
55.0 |
1300 |
0.883 |
|
PWTR45100.2RS |
45 |
100 |
32 |
30 |
55 |
85.0 |
1300 |
1.396 |
|
PWTR50.2RS |
50 |
90 |
32 |
30 |
44.5 |
57.0 |
1100 |
0.95 |
|
PWTR50110.2RS |
50 |
110 |
32 |
30 |
58.0 |
94.0 |
1100 |
1.69 |
