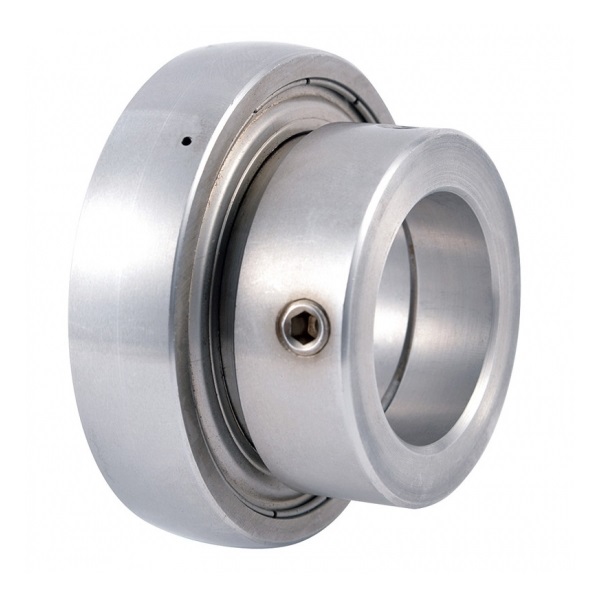

SUC Stainless Steel
The most common solution for hostile chemical wash down applications, stainless inserts are composed of the following:
Rings & Balls |
440 stainless steel |
Set Screw |
304 stainless steel |
Slinger & Seal Frame |
304 stainless steel |
Retainer |
304 stainless steel |
Eccentric Collar(SNA) |
304 stainless steel |
Seal |
Nitril & Silicone Rubber |
Lubrication |
Mobil FM222 NSF H1 food grade grease |
Operating Temp. |
-10° F to 250° F (-20° C +120° C ) |
CUC – Hard Chrome Coated
Highly effective for intermediate wash down applications, chrome coated inserts can dramatically extend bearing life beyond that of other plated bearing products. CUC inserts are composed of the following:
Rings & |
440 stainless steel Hard Chrome Coated |
Balls |
440 stainless steel |
Set Screw |
410 stainless steel |
Slinger & Seal Frame |
304 stainless steel |
Retainer |
304 stainless steel |
Eccentric Collar(SNA) |
304 stainless steel |
Seal |
Nitril & Silicone Rubber |
Lubrication |
Mobil FM222 NSF H1 food grade grease |
Operating Temp. |
-10° F to 250° F (-20° C +120° C ) |
BUC – Black Oxide
A popular choice for mildly corrosive applications. Also see Black Oxide ER and Black Oxide High Temperature HUC bearings.
Application
Food processing machinery Medical equipment Chemical and Agricultural machinery
-
Stainless Steel Bearing Inserts With Setscrew Locking SUC2 SUC2...L3 -
Stainless Steel Bearing Inserts With Eccentric Locking SNA2 SNA2...L3 -
Stainless Steel Bearing Inserts With Concentic Locking SUE2 -
Stainless Steel Bearing Inserts With Setscrew Locking SSB2 -
Stainless Steel Bearing Inserts With Eccentric Locking SSA -
Stainless Steel Bearing Inserts With Setscrew Locking SSER -
Stainless Steel Bearing Inserts With Concentic Locking SUER2 -
Stainless Steel Bearing Inserts With Adapter Sleeve Locking SUK2 -
insert ball bearing Black Oxide -
-
