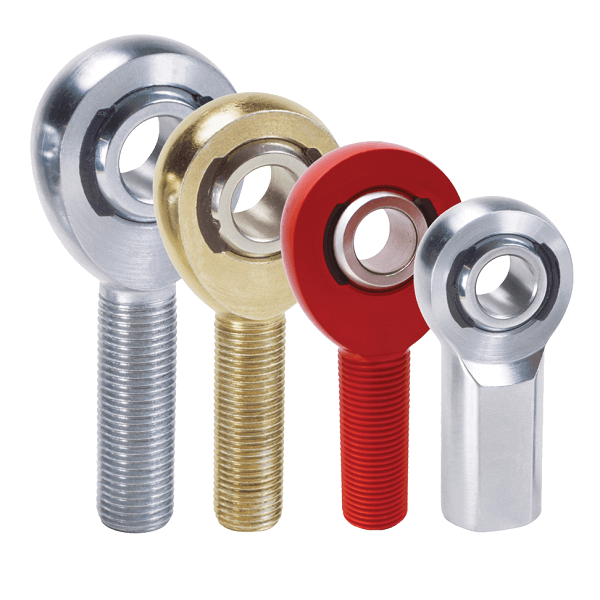

Rod end bearings, also called heim joints or spherical rod ends, are articulating joints that are attached to the ends of tie rods, steering links, and cylinders to provide a transfer of motion and force between two points. They consist of a spherical swivel with a cylindrical bore through which a bolt may pass pressed into a housing that has a threaded shank. Rod end bearings are used in applications such as steering linkages, agricultural machinery, and textile manufacturing equipment, and off-road vehicles,among others
All C&H rod end need be 100% inspected against various parameters before delivery to customer. Custom orders are available and can include special materials, clearances, surface finishes or configurations to accommodate unique applications.
If you are uncertain as to which of rod end is best suited for your design application, check with us freely. We will give the suitable suggestion.
Features
• High quality raw material
• Advanced heat treated equipment and technology
• CNC lathing and grinding line guarantee the accuracy tolerance
• Automatic hanger phosphate line
• In-Process control and 100% inspection before delivery to user
C&H can offer the following variants:
Maintenance free and Maintenance requiring
Bronze race, PTFE liner, Plastic Injection
Grease nipple: plash type, Zerk type, without nipple
Metric and Inch size
Two-piece: SI-PK, SA-PK, CF, CM, CF-T, CM-T
Three-piece: SI-ES, SA-ES, SI-TK, SA-TK, GIR, GAR, SI-ZK, SA-ZK, JF, JM, KF, KM
Four piece: PHS, POS, SIZP-S, SAZP-S
Rod end with stud: CF-Y, CM-Y, SQZ-RS, SQ-RS, SQP-S, BL-D
Rod end for hydraulic components: GIHR-DO, GIHR-K-DO, GIHN-K-LO, GIHO-K-DO, GK-SK
Custom made Rod Ends and Spherical Plain Bearings
C&H produces a multitude of products for specific customers with designs and configurations to meet unique requirement. C&H specialized in providing practical and sound solutions to rod ends and spherical plain bearing application problems and challenges. Some of options available include:
• Variations in length of shank or stud
• Variations in bore diameter of ball
• Enhanced plating or corrosion resistance
• Metric dimensions
• Special material such as stainless steel
• Sealed rod ends. Seal made by rubber or synthetic materials to give rod end additional protection from contaminants for prolonged life in service.
Application
The plain bearing is widely used in following application
A-frames, dump cylinders, front and rear struts, and steering cylinders for mining trucks
Equalizer track bars, lift and tilt cylinders, push blades, trunnion balls and ripper blades for bulldozers
Articulated joint upper and lower steering cylinders and boom and bucket cylinders for wheel loaders
Stick and bucket cylinders for hydraulic excavators
Additional applications for space shuttles, heavy movable structures and miscellaneous vehicles
Fields: Agriculture, Construction, forklift trucks, material handling, metals, mining, railways, trucks, wind energy,
-
PHS -
POS -
SI…TK -
SA…TK -
PHS…EC -
POS…EC -
SPHS
Stainless Steel Rod Ends -
SPOS
Stainless Steel Rod Ends -
SSI…TK
Stainless Steel Rod Ends -
SSA…TK
Stainless Steel Rod Ends -
SPHS…EC
Stainless Steel Rod Ends -
SPOS…EC
Stainless Steel Rod Ends -
Injection molded Rod Ends SI…ZK -
Injection molded Rod Ends SA…ZK -
SI…E, SI…ES,SI…ES 2RS -
SA…ES,SA…ES 2RS -
GIR…UK(2RS) -
GAR…UK(2RS) -
-

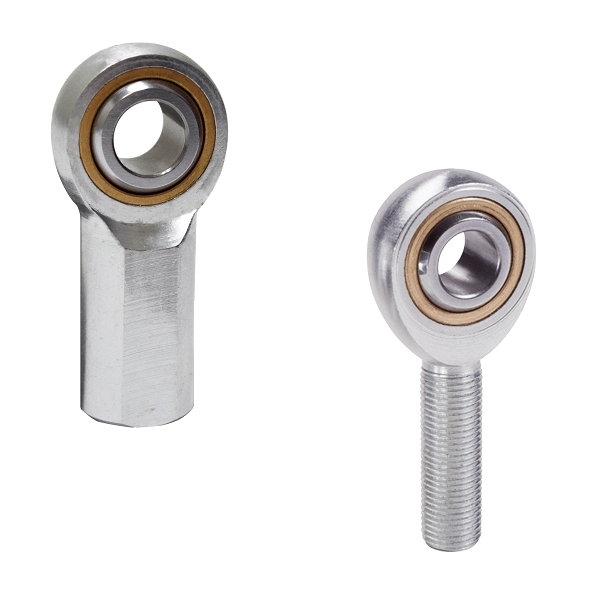

Rod End, Female Threaded Type PHS Type
Highly rigid with superior abrasion and corrosion resistance.
The correct amount of lubricant can be supplied to the sliding surface via the grease nipple attached to the holder.[Features]
· Lubrication: Lubricate before use. There is a lubrication hole and oil groove on the holder, so it can be lubricated via the grease nipple.
· Left-hand female thread identification: For left-hand female threads, the letter "L" is added. "L" is marked on the holder of the product.
Code | d | d3 6H | B | C1 | d2 | W | L4 | h1 | L5 | d4 | d5 | Weight |
mm | KG | |||||||||||
PHS4 | 4 | M4x0.7 | 7 | 5.3 | 14 | 8 | 31 | 24 | 4 | 8 | 10 | 0.009 |
PHS5 | 5 | M5×0.8 | 8 | 6 | 16 | 9 | 35 | 27 | 4 | 8.5 | 11 | 0.016 |
PHS6 | 6 | M6×1.0 | 9 | 6.8 | 18 | 11 | 39 | 30 | 5 | 10 | 13 | 0.022 |
PHS8 | 8 | M8×1.25 | 12 | 9 | 22 | 14 | 47 | 36 | 5 | 13 | 16 | 0.047 |
PHS10 | 10 | M10×1.5 | 14 | 11 | 26 | 17 | 56 | 43 | 7 | 15 | 19 | 0.077 |
PHS12 | 12 | M12×1.75 | 16 | 12 | 30 | 19 | 65 | 50 | 7 | 18 | 22 | 0.1 |
PHS14 | 14 | M14×2.0 | 19 | 14 | 34 | 22 | 74 | 57 | 8 | 20 | 25 | 0.16 |
PHS16 | 16 | M16×2.0 | 21 | 15 | 40 | 22 | 84 | 64 | 8 | 22 | 27 | 0.22 |
PHS18 | 18 | M18×1.5 | 23 | 17 | 44 | 27 | 93 | 71 | 10 | 25 | 31 | 0.32 |
PHS20 | 20 | M20×1.5 | 25 | 18 | 50 | 30 | 102 | 77 | 10 | 28 | 34 | 0.42 |
PHS22 | 22 | M22×1.5 | 28 | 20 | 54 | 32 | 111 | 84 | 12 | 30 | 38 | 0.54 |
PHS25 | 25 | M24×2.0 | 31 | 22 | 60 | 36 | 124 | 94 | 12 | 34 | 42 | 0.73 |
PHS28 | 28 | M27×2.0 | 35 | 24 | 66 | 41 | 136 | 103 | 14 | 37 | 46 | 0.98 |
PHS30 | 30 | M30×2.0 | 37 | 25 | 70 | 41 | 145 | 110 | 15 | 40 | 50 | 1.1 |
Rod End, Male Threaded Type POS Type
This model is a highly rigid rod end that is basically the same as the female threaded model PHS, but has a male thread on the holder end.
Highly rigid with superior abrasion and corrosion resistance.
The correct amount of lubricant can be supplied to the sliding surface via the grease nipple attached to the holder.[Features]
· Lubrication: Lubricate before use. There is a lubrication hole and oil groove on the holder, so it can be lubricated via the grease nipple.
· Left-hand female thread identification: For left-hand female threads, the letter "L" is added. "L" is marked on the holder of the product.
C&H | d | d3 6H | B | C1 | L1 min | d2 | h | L2 | Weight |
mm | KG | ||||||||
POS 5 | 5 | M5×0.8 | 8 | 6 | 20 | 16 | 33 | 41 | 0.013 |
POS 6 | 6 | M6×1.0 | 9 | 6.8 | 22 | 18 | 36 | 45 | 0.02 |
POS 8 | 8 | M8×1.25 | 12 | 9 | 25 | 22 | 42 | 53 | 0.03 |
POS 10 | 10 | M10×1.5 | 14 | 11 | 29 | 26 | 48 | 61 | 0.055 |
POS 12 | 12 | M12×1.75 | 16 | 12 | 33 | 30 | 54 | 69 | 0.085 |
POS 14 | 14 | M14×2.0 | 19 | 14 | 36 | 34 | 60 | 77 | 0.14 |
POS 16 | 16 | M16×2.0 | 21 | 15 | 40 | 40 | 66 | 86 | 0.21 |
POS 18 | 18 | M18×1.5 | 23 | 17 | 44 | 44 | 72 | 94 | 0.28 |
POS 20 | 20 | M20×1.5 | 25 | 18 | 47 | 50 | 78 | 103 | 0.38 |
POS 22 | 22 | M22×1.5 | 28 | 20 | 51 | 54 | 84 | 111 | 0.48 |
POS 25 | 25 | M24×2.0 | 31 | 22 | 57 | 60 | 94 | 124 | 0.64 |
POS 28 | 28 | M27×2.0 | 35 | 24 | 62 | 66 | 103 | 136 | 0.96 |
POS 30 | 30 | M30×2.0 | 37 | 25 | 66 | 70 | 110 | 145 | 1.1 |
Interchange of PHS
Right Hand
C&H | ELGES | SKF | ASK | LSK | IKO | THK | MTR | LS |
PHS5 | GIKFR5-PB | SIKAC5M | KI5NIRO | TSF5 | PHS5 | PHS5 | BNF5 | SIBP5S |
PHS6 | GIKFR6-PB | SIKAC6M | KI6NIRO | TSF6 | PHS6 | PHS6 | BNF6 | SIBP6S |
PHS8 | GIKFR8-PB | SIKAC8M | KI8NIRO | TSF8 | PHS8 | PHS8 | BNF8 | SIBP8S |
PHS10 | GIKFR10-PB | SIKAC10M | KI10NIRO | TSF10 | PHS10 | PHS10 | BNF10 | SIBP10S |
PHS12 | GIKFR12-PB | SIKAC12M | KI12NIRO | TSF12 | PHS12 | PHS12 | BNF12 | SIBP12S |
PHS14 | GIKFR14-PB | SIKAC14M | KI14NIRO | TSF14 | PHS14 | PHS14 | BNF14 | SIBP14S |
PHS16 | GIKFR16-PB | SIKAC16M | KI16NIRO | TSF16 | PHS16 | PHS16 | BNF16 | SIBP16S |
PHS18 | GIKFR18-PB | SIKAC18M | KI18NIRO | TSF18 | PHS18 | PHS18 | BNF18 | SIBP18S |
PHS20 | GIKFR20-PB | SIKAC20M | KI20NIRO | TSF20 | PHS20 | PHS20 | BNF20 | SIBP20S |
PHS22 | GIKFR22-PB | SIKAC22M | KI22NIRO | TSF22 | PHS22 | PHS22 | BNF22 | SIBP22S |
PHS25 | GIKFR25-PB | SIKAC25M | KI25NIRO | TSF25 | PHS25 | PHS25 | BNF25 | SIBP25S |
PHS28 | GIKFR28-PB | SIKAC28M | KI28NIRO | TSF28 | PHS28 | PHS28 | BNF28 | SIBP28S |
PHS30 | GIKFR30-PB | SIKAC30M | KI30NIRO | TSF30 | PHS30 | PHS30 | BNF30 | SIBP30S |
Left Hand
C&H
ELGES
SKF
ASK
LSK
IKO
THK
MTR
LS
PHSL5
GIKFL5-PB
SILKAC5M
KIL5NIRO
TSFL5
PHSL5
PHSL5
BNFL5
SILBP5S
PHSL6
GIKFL6-PB
SILKAC6M
KIL6NIRO
TSFL6
PHSL6
PHSL6
BNFL6
SILBP6S
PHSL8
GIKFL8-PB
SILKAC8M
KIL8NIRO
TSFL8
PHSL8
PHSL8
BNFL8
SILBP8S
PHSL10
GIKFL10-PB
SILKAC10M
KIL10NIRO
TSFL10
PHSL10
PHSL10
BNFL10
SILBP10S
PHSL12
GIKFL12-PB
SILKAC12M
KIL12NIRO
TSFL12
PHSL12
PHSL12
BNFL12
SILBP12S
PHSL14
GIKFL14-PB
SILKAC14M
KIL14NIRO
TSFL14
PHSL14
PHSL14
BNFL14
SILBP14S
PHSL16
GIKFL16-PB
SILKAC16M
KIL16NIRO
TSFL16
PHSL16
PHSL16
BNFL16
SILBP16S
PHSL18
GIKFL18-PB
SILKAC18M
KIL18NIRO
TSFL18
PHSL18
PHSL18
BNFL18
SILBP18S
PHSL20
GIKFL20-PB
SILKAC20M
KIL20NIRO
TSFL20
PHSL20
PHSL20
BNFL20
SILBP20S
PHSL22
GIKFL22-PB
SILKAC22M
KIL22NIRO
TSFL22
PHSL22
PHSL22
BNFL22
SILBP22S
PHSL25
GIKFL25-PB
SILKAC25M
KIL25NIRO
TSFL25
PHSL25
PHSL25
BNFL25
SILBP25S
PHSL28
GIKFL28-PB
SILKAC28M
KIL28NIRO
TSFL28
PHSL28
PHSL28
BNFL28
SILBP28S
PHSL30
GIKFL30-PB
SILKAC30M
KIL30NIRO
TSFL30
PHSL30
PHSL30
BNFL30
SILBP30S
