Insert Ball Bearings
Insert bearing chrome steel are composed of the following:
Insert bearing chrome steel are composed of the following:
|
Rings & Balls |
52100 chrome steel |
|
Set Screw |
1045 carbon steel |
|
Slinger & Seal Frame |
cold rolled steel |
|
Retainer |
cold rolled steel |
|
Eccentric Collar(NA) |
1045 carbon steel |
|
Seals |
NBR (metal backed nitrile rubber excluder seal) |
|
Lubrication |
Chevron SRI 2 grease |
|
Operating Temp. |
-10° F to 250° F (-20° C +120° C ) |
-

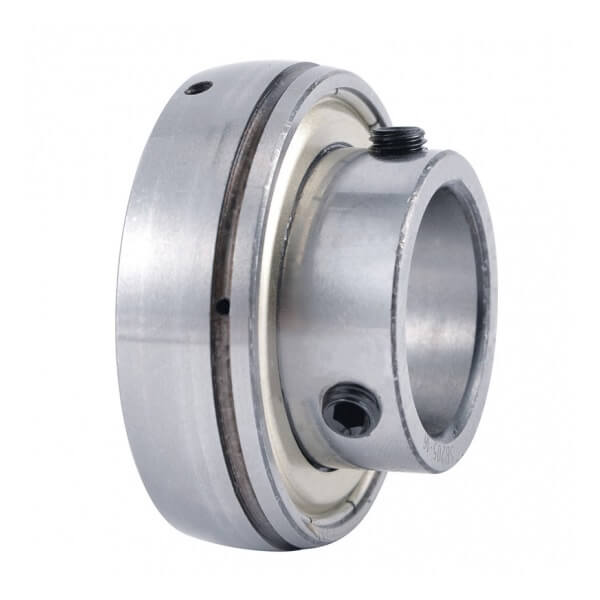

UC2 wide inner ring set screw insert bearings -
UC2…L3 wide inner ring set screw triple lip seal insert bearings -

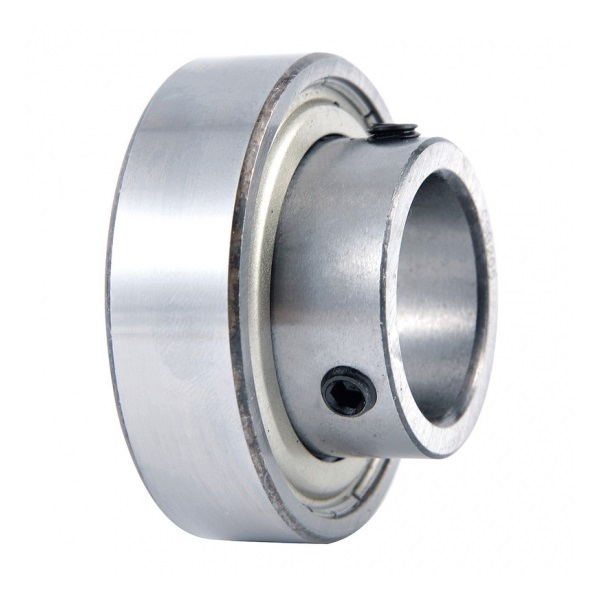

SB light duty narrow inner ring set screw insert bearings -
NA2 normal duty wide inner ring eccentric locking insert bearings -
NA2…L3 normal duty wide inner ring eccentric locking triple lip seal insert bearings -
SA light duty narrow inner ring eccentric locking insert bearings -
SER set screw locking Insert bearings -
Insert bearing UK with adapter sleeve locking -

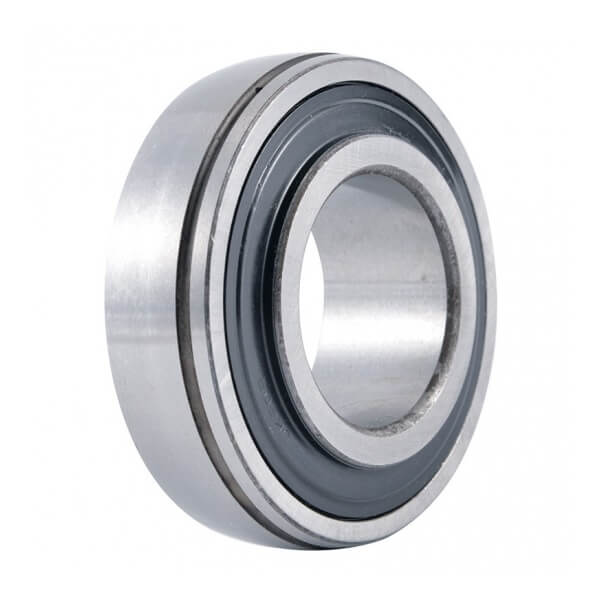

SC Insert bearing -
CUC2 wide inner ring set screw insert bearings with cylindrical outer rings -
CSB light duty narrow inner ring set screw insert bearings with cylindrical outer rings -
CSA light duty narrow inner ring eccentric locking insert bearings with cylindrical outer rings -
-
