Mounting Accessories for Pneumatic Cylinder
C&H produce and design all kind of pneumatic cylinder accessories, including CP96, MB, SC, DNC, MA, MAI, DSN, SDA, ADVU, AND cylinder kits.

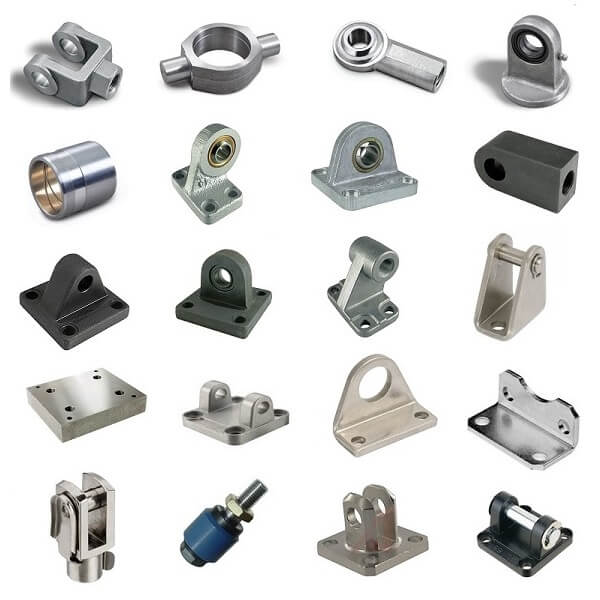

C&H have Cylinder Mounting Bracket options, Center Trunnion, Foot Joint, I Joint, Fish eye Joint, Floating Joints, Clevis,

Standard Available
ISO15552 Cylinder Accessories
JIS Standard MB Cylinder Accessories
JIS Standard CA2 Cylinder Accessories
SC Cylinder Accessories
ISO21287 Compact Cylinder Accessories
Compact Cylinder CQ Accessories
ISO6432 Round Cylinder MI Accessories
Round Cylinder MF Accessories
Round Cylinder MAL Accessories

Custom Product
C&H can supply cylinder parts according to customer unique requirement such as
Special material, special dimension, special surface treatment.

Applications:
Pneumatic air cylinder accessories are the supporting parts for air cylinder to realize the fixture mounting and functional application joint with air cylinder and work pieces.



ORDERING CODE

ISO

CB

40

ISO:ISO Cylinder Accessories

Type

Bore Size

CB: Double earring

6:6mm

8:8mm

CA: Single earring

10:10mm

12:12mm

Y+PIN:Y Joint with Pin

16:16mm

20:20mm

YC+PIN:Y Clevis with Pin

25:25mm

32:32mm

LB: Foot bracket

40:40mm

50:50mm

FA/FB: Front Flange/Rear Flange

63:63mm

M:Mini cylinder Accessories

80:80mm

SDB:T shape Earring

100:100mm

125:125mm

FJ: Float Joint

160:160mm

Blank: Other Standard Cylinder Accessories

FEB: Fish Eye Bearing

200:200mm

TC: Central Trunnion

250:250mm

TC-M: Central Trunnion with bracket

320:320mm

U:U type clevis

400:400mm

I: I Joint
