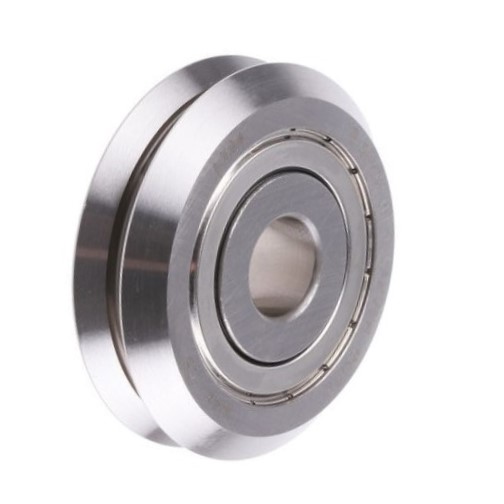

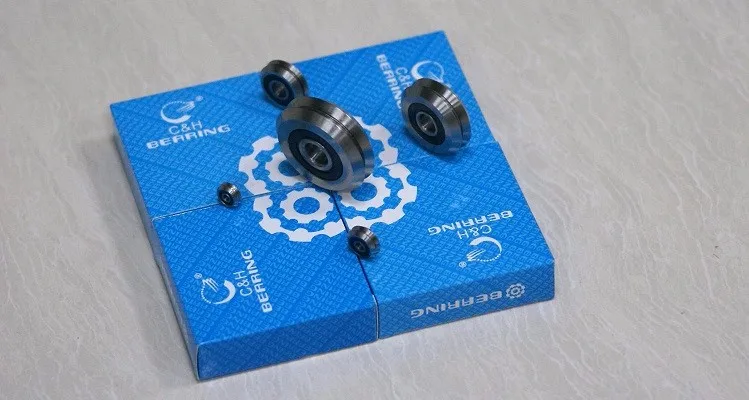

▼ Description and Features of Dual V Guide Wheel
• Dual V Guide Wheels are the main components of the Linear Motion System, it is widely used in the industrial robot cutting machine, motion track, production flow and so on.The surface of outer ring is the " W " profile formed by the two " V " withan angle of 90 degrees. The internal or external side face can be matched separately with the concave or protrudable track that both have a " V " profile with the angle of 90 degrees, and also the internal side face can be matched well with the cylindrical track.
• Wheels feature the internal design of double row angular contact ball bearing and a thick-walled outer ring, so the wheels can accommodate higher loads
• Wheels are made of the high-quality bearing steel, processed by heat treatment and precision grinding, and are filled with a long service life, high-grade and multipurposes grease. Wheels mantle the metal shields or rubber seals to prevent the dust. C&H also can supply stainless steel W guide wheels for corrosion resistant
▼ Characteristics of Guide System that series dual vee guidewheel are applied
• Low resistance, long service life, widely-use
After precision grinding, the roughness of working surface of the series W wheels are fine and the angle of 90 degrees is accurate. The wheels have good parallelism between the " W " profile groove and the mounting planes of inner ring relatively. When the wheels running, the stresses between the wheel and track is in equality and the friction resistance is low.
• Easy installation
After wheels assembled the concentric or eccentric bushing, installation can be made conveniently. To adjust the eccentric of one's eccentricity, the wheels can get the fitting preload.
Characteristics of Guide System that series W wheels are applied Characteristics of Guide System that series W wheels are applied

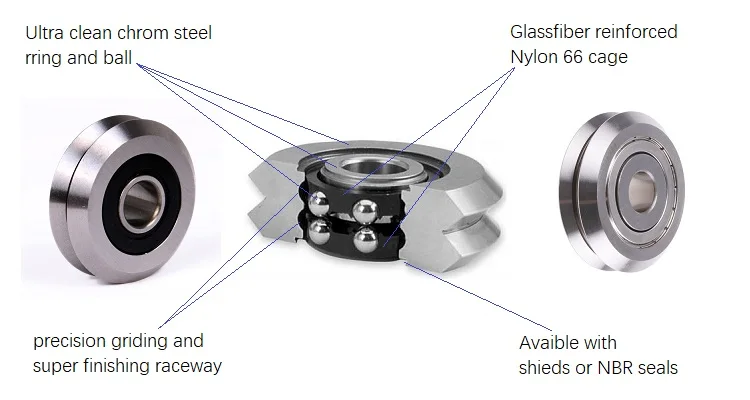

Item | C&H | Competitor with Lower Price |
Rings Material | ultra clean bearing steel | commercial bearing steel |
Cage Material | Basf Nylon 66 | commercial nylon 66 |
Balls Grade | G10 grade low noise steel ball | G16 or G40 steel ball |
Raceway ground | fine ground and super finishing | stealing grinding time to save money |
"W" profile ground | fine ground | commercial Rotary Dresser |
Closure Quality | High quality NBR seals or shields | commercial NBR seals or shields |
Symmetry | 0.06mm - 100% inspection | no control -no inspection |
Runout | 0.15~0.02mm - 100% inspection | no control -no inspection |
Grease | Shell Alvania S2 | Changzhou 2# |
Surface | mirror ultrfinish | common fininsh |
Rings Material: ultra clean bearing steel
Cage Material:Basf Nylon 66
Balls Grade:G10 grade low noise steel ball
Raceway ground:fine ground and super finishing
"W" profile ground: fine ground
Closure Quality: High quality NBR seals or shields
Symmetry: 0.06mm - 100% inspection
Runout: 0.15~0.02mm - 100% inspection
Grease: Shell Alvania S2 or SRL
Surface: mirror ultrfinish or zinc-nickel alloy plated

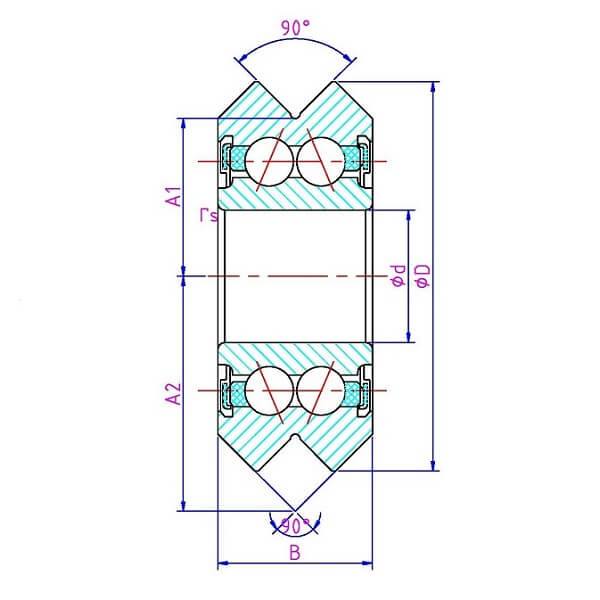

C&H | Dimensions (mm) | Load Ratings(N) | Mass | BWC | NIKO | ||||||
d +0/-0.008 |
D +0/-0.08 |
B +0/-0.01 |
A1
|
A2
|
rs
|
Cw
|
Cow
|
≈(g)
|
|||
W0-2Z | 4 | 14.84 | 6.35 | 5.94 | 9.12 | 0.3 | 1480 | 660 | 5 | W0 | |
W1-2Z | 4.763 | 19.56 | 7.87 | 7.93 | 11.86 | 0.3 | 2280 | 1140 | 11 | W1 | RM1ZZ |
W2-2Z | 9.525 | 30.73 | 11.1 | 12.7 | 18.24 | 0.3 | 4700 | 2800 | 38 | W2 | RM2ZZ |
W3-2Z | 12 | 45.72 | 15.88 | 19.05 | 26.98 | 0.6 | 9300 | 5100 | 130 | W3 | RM3ZZ |
W4-2Z | 15 | 59.94 | 19.05 | 25.4 | 34.93 | 1 | 14800 | 8200 | 280 | W4 | RM4ZZ |
W4XL-2Z | 22 | 75.39 | 25.4 | 31.75 | 44.45 | 1.1 | 29700 | 20000 | 580 | W4XL | |
W0-2RS | 4 | 14.84 | 6.35 | 5.94 | 9.12 | 0.3 | 1480 | 660 | 5 | W0X | |
W1-2RS | 4.763 | 19.56 | 7.87 | 7.93 | 11.86 | 0.3 | 2280 | 1140 | 11 | W1X | RM1-2RS |
W2-2RS | 9.525 | 30.73 | 11.1 | 12.7 | 18.24 | 0.3 | 4700 | 2800 | 38 | W2X | RM2-2RS |
W3-2RS | 12 | 45.72 | 15.88 | 19.05 | 26.98 | 0.6 | 9300 | 5100 | 130 | W3X | RM3-2RS |
W4-2RS | 15 | 59.94 | 19.05 | 25.4 | 34.93 | 1 | 14800 | 8200 | 280 | W4X | RM4-2RS |
W4XL-2RS | 22 | 75.39 | 25.4 | 31.75 | 44.45 | 1.1 | 29700 | 20000 | 580 | W4XXL | |
SW1-2RS | 4.763 | 19.56 | 7.87 | 7.93 | 11.86 | 0.3 | 2280 | 1140 | 11 | W1SSX | |
SW2-2RS | 9.525 | 30.73 | 11.1 | 12.7 | 18.24 | 0.3 | 4700 | 2800 | 38 | W2SSX | |
SW3-2RS | 12 | 45.72 | 15.88 | 19.05 | 26.98 | 0.6 | 9300 | 5100 | 130 | W3SSX | |
SW4-2RS | 15 | 59.94 | 19.05 | 25.4 | 34.93 | 1 | 14800 | 8200 | 280 | W4SSX | |
SW4XL-2RS | 22 | 75.39 | 25.4 | 31.75 | 44.45 | 1.1 | 29700 | 20000 | 580 | W4SSXXL |
• Clean room guide wheel - All stainless steel components are internally lubricated with Krytox GPL 227 grease.
• High temperature guide wheel - Heat stabilized components allow for operating temperatures to 260 ℃
Double V Guide wheels can be mounted vertically or horizontally to suite differing space and application requirements.
Additionally, guide wheels can be used to support rotary motion.
The rollers can be widely used in the industrial robot,cutting machine,motion track,vending machines,production flow and so on.
Wheel Name |
Wheel Series |
Application Conditions |
Application Examples |
Avaiable Sizes |
Seal Shield |
Wheel Material |
Cage Material |
Grease |
Temp. Range |
V Guide wheels chrome |
W |
General purpose Factory floor conditions |
Automation Automative Woodworking Pringting Packaging Paper/Textile |
0, 1 | Shield | 52100 | Nylon 66 |
Shell Alvania EP2 |
-30ºC to +100ºC |
0, 1, 4XL | Seal | ||||||||
2, 3, 4 |
Seal Shield |
||||||||
V Guide wheels stainless |
SW | Corrosive conditions |
Medical Laboratory Food & Beverage |
1 | Seal |
440C stainless |
Nylon 66 |
Shell Alvania EP2 |
-30ºC to +10ºC |
2,3,4,4XL |
Seal Shield |
||||||||
Studded Polymer Wheels |
SW…P |
Corrosive conditions Low noise requirements |
Electronics Medical Laboratory |
0, 1, 2 | Shield |
Polymer 440C stainless |
304 stainless |
Kluberplex BEM034-132 |
-4ºF to +248ºF -20ºC to +120ºC |
Vacuum Wheels |
SW…VM |
Vacuum environments |
Material science Life sciences |
1, 2 | Shield |
440C stainless |
304 stainless |
Lubcon Ultrathern 2000 |
-35ºC to +250ºC |
Washdown Wheels |
SW…WD |
Washdown conditions Hygienic environments |
Food processing Food packaging |
2, 3 |
Double Seal |
440C stainless |
Nylon 66 |
Klubersynth UH1 14-151 |
-30ºC to +100ºC |
Food/ Pharma Wheels |
SW…FH |
Washdown conditions |
Food processing Food packaging Pharmaceutical |
2, 3 |
Seal Shield |
440C stainless |
Nylon 66 |
Klubersynth UH1 14-151 |
-30ºC to +80ºC |
Guide Wheel for extreme conditions |
SW…227 |
High temp
conditions |
Baking Welding Plasma cuttles |
0,1,2,3,4 | Shield |
440C stainless |
304 stainless |
Hrytox GPL227 |
-30ºC to +260ºC |
SW…300 |
Low temp. conditions Subzero conditions Corrosiveconditions |
Aerospace Refrigeration Flash freezing |
1,2,3,4 | Shield |
440C stainless |
304 stainless |
Kluber Isoflex PDL 300A |
-70ºC to +110ºC |
